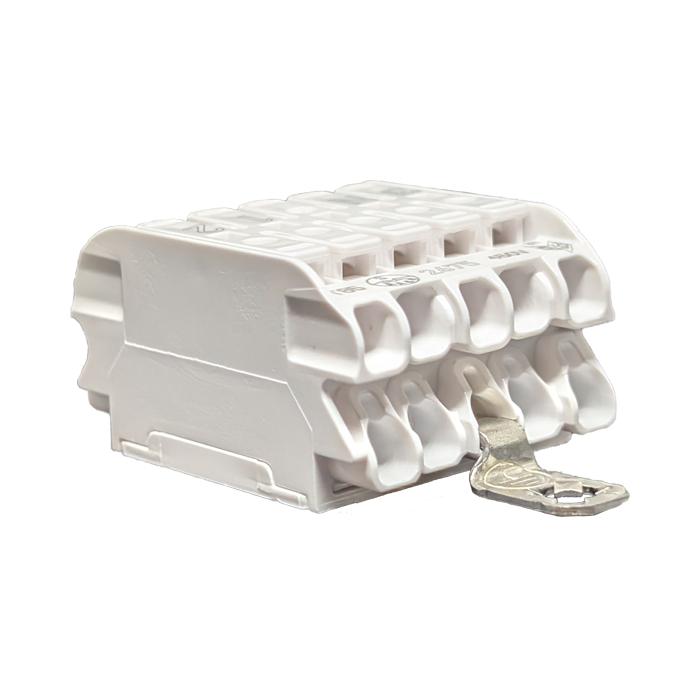

5-pole Luminaire Connector with “double decker” grounding bracket

Item No. 2675/SP/43

|
EG-Nr. 1322

Seulement le stock restant disponible en entrepôt. Successeur direct: ET88168804 .

5-pole luminaire terminal block with earthing lug and standard labeling (3 N ERDE 1 2). Identical terminal block with DALI labeling (L N ERDE DA+ DA-): 2675/SP-DA/43
Number of Poles 5-poles
Protection IP20
Color white
Material Polycarbonate
ELDAS®-Nr 157 000 119
Brand Stucchi
Poles 4P+E
Rated current and rated voltage 16A-450V
Max. operating temperature T85
Housing polycarbonate, white
Earthing tin-plated steel
Internal parts tin-plated copper steel
from stock
from stock
available from stock
Downloads
pdf
Product datasheet
(Size: 381.1 KB)
