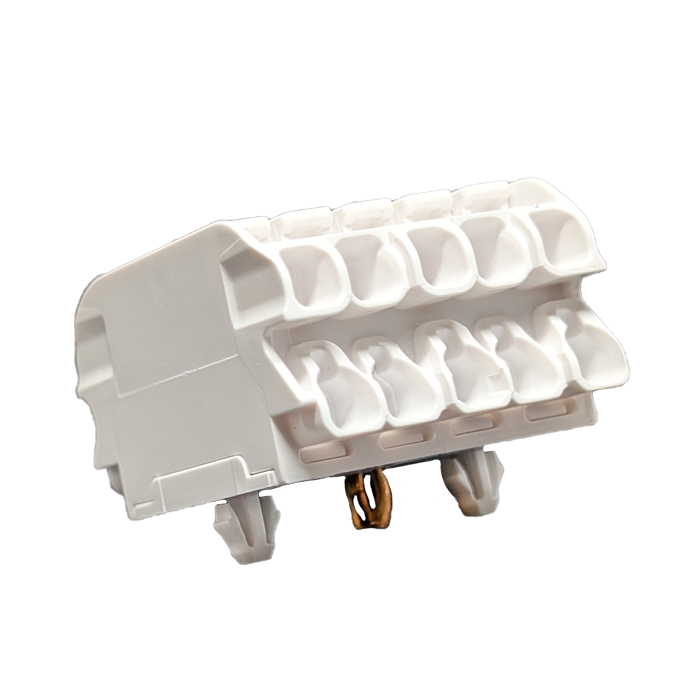

5-pole Luminaire Connector with pluggable earthing (L N EARTH DA+ DA-)

Item No. 2675/ADA/42

|
EG-Nr. 7160
5-pole luminaire terminal block with pluggable earthing and DALI labeling (L N ERDE DA+ DA-). Identical terminal block with standard labeling (3 N ERDE 1 2): Article 2675/A/42 Matching cable clamp: ET88167608
Number of Poles 5-poles
Protection IP20
Color white
Material Polycarbonate
ELDAS®-Nr 157 000 099
Brand Stucchi
Poles 4P+E
Rated current and rated voltage 16A-450V
Max. operating temperature T85
Housing polycarbonate, white
Earthing connection bronze
Internal parts tin-plated copper steel
from stock
from stock
available from stock
Downloads
pdf
Product datasheet
(Size: 448.2 KB)
