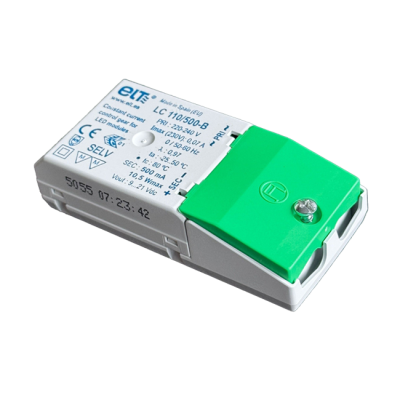

LED Driver 500mA 10W
Item No. EG/500MA/10W
|EG-Nr. 2729
This LED driver with constant output current is suitable for operating
,
and
. If there are several LEDs, these are connected in series to the LED driver.
| Power | 10W |
|---|---|
| Output current | 500mA |
| Dimming type | Not dimmable |
| Protection | IP20 |
| Dimensions | 80x36x22mm |
| Output voltage DC | 9-21Vdc |
| Input voltage | 220-240V |
| Rated power | 10W |
| Ambient temperature | max.50°C |
| Housing temperature | max.80°C |
available from stock
Description
This LED driver with constant output current is suitable for operating
,
and
. If there are several LEDs, these are connected in series to the LED driver.
