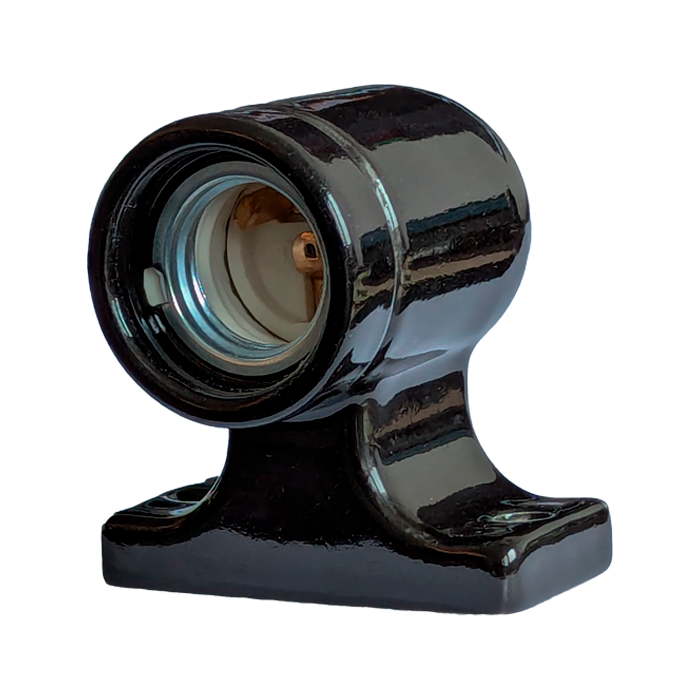

Angle socket E27 porcelain black
Item No. EGE27-WKF-SW
|EG-Nr. 8220
This angled socket is suitable for wall mounting. In combination with an E27 light source, you get a functional luminaire with a timeless design. The integrated predetermined breaking points on the underside allow the socket to be opened easily so that the power cables can be conveniently inserted and securely connected.
| Lampholder Type | E27 |
|---|---|
| Protection | IP20 |
| Color | black |
| Dimensions | 75x78mm |
| Material | Porcelain |
| ELDAS®-Nr | 930 001 839 |
| Rated voltage | 250V |
| Rated current | 4A |
| Power max | 60W |
| Screw terminals | 0.75-1.50mm² |
| Fixing distance | 60mm |
| Ø fixing holes | 5mm |
available from stock
Downloads
