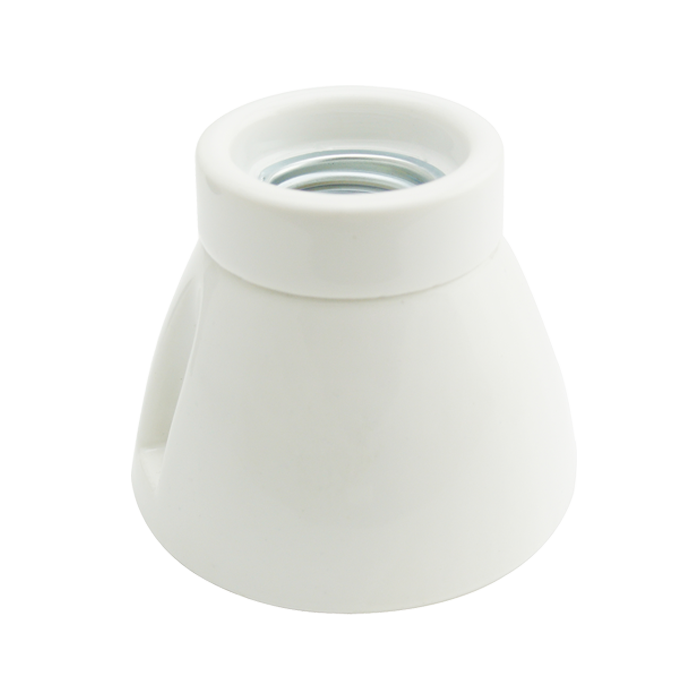

Ceiling socket E27 porcelain white

Item No. EGE27-DF-WS

|
EG-Nr. 8215
This E27 porcelain socket is suitable for ceiling mounting. In combination with an E27 light source, you get a functional luminaire with a timeless design.
Lampholder Type E27
Protection IP20
Color white
Dimensions Ø75x60mm
Material Porcelain
ELDAS®-Nr 930 000 819
Rated voltage 250V
Rated current 4A
Power max 60W
Screw terminals 0.75-1.50mm²
Fixing distance 60mm
Ø fixing holes 4.5mm
from stock
from stock
available from stock
Downloads
pdf
Product datasheet
(Size: 161.9 KB)
