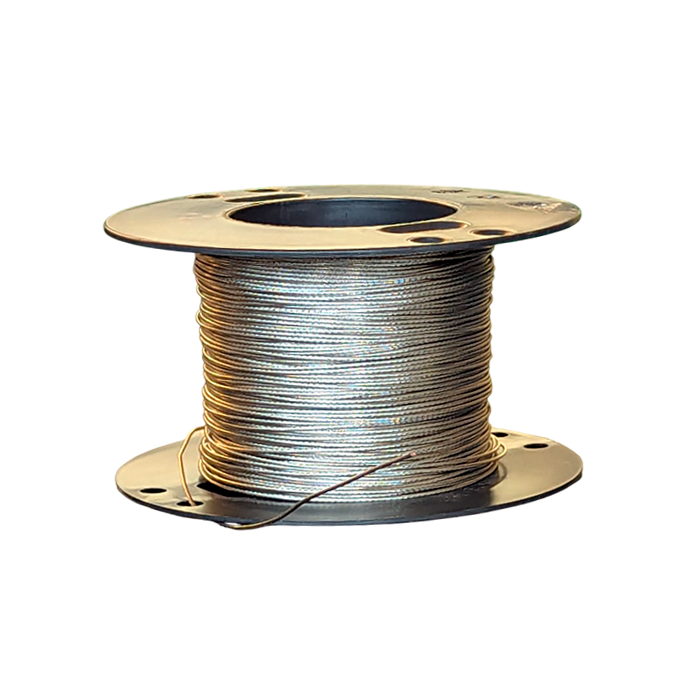

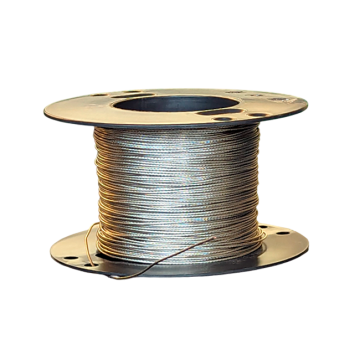

Wire rope 1.2 mm with copper core 1x0.5 mm2 100m
Item No. DSCU0512
|EG-Nr. 11377
The wire rope with copper core combines the electrical conductivity with the mechanical strength of a wire rope and is ideal for LED systems in which support and conductor functions are combined. By stranding copper strands with wire ropes, the rope simultaneously assumes the function of a power cable and a suspension rope, which enables an aesthetic design. The current-carrying ropes are flexible and can withstand a breaking load of 20 kg and a working load of 4 kg.
The wire rope is suitable for our wire rope holder: Article (M10x1) / Article (M8x1). Also available cut to size/m: Article| Number of Conductors | 1 |
|---|---|
| Material | Steel |
| Cable diameter | 1.2mm |
| Cross-section | 1x0.5mm² |
| Voltage range | 0-50V |
| Current max. | 3A |
| Breaking load | 20Kg |
| Safety load | 4Kg |
available from stock
Downloads
