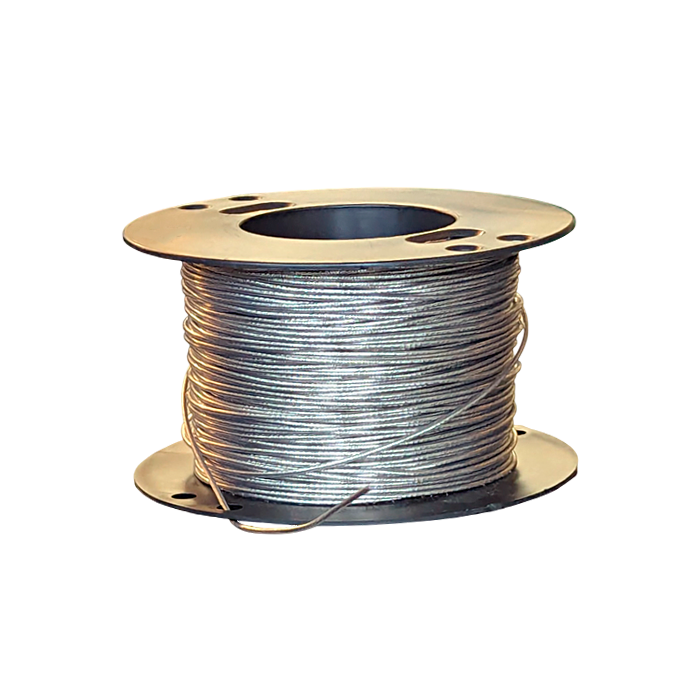

Wire rope 1.6 mm with copper core 1x0.5 mm² insulated with transp. FEP 100m
Item No. DSCU0516TR
|EG-Nr. 11378
The insulated wire rope with copper core combines the electrical conductivity with the mechanical strength of a wire rope and is ideal for LED systems in which support and conductor functions are combined. By stranding stranded copper wire with wire ropes, the rope simultaneously assumes the function of a power cable and a suspension rope, which enables an aesthetic design. The current-carrying ropes are flexible and can withstand a breaking load of 20 kg and a working load of 4 kg.
Also available cut to size/m: Article| Number of Conductors | 1 |
|---|---|
| Color | transparent |
| Material | Steel |
| Cable diameter | 1.6mm |
| Cable insulation | FEP |
| Cross-section | 1x0.5mm² |
| Voltage range | 0-50V |
| Current max. | 3A |
| Breaking load | 20Kg |
| Safety load | 4Kg |
available from stock
